PCM Datasheet

PCM series

The PCM series is our flagship touring grade 2 channel amplifier. Exemplifying over 15 years of research and development by SAE Audio, they feature our most advanced technologies in both Regulated Switch Mode Power Supplies and our patented Class I™ power modules. The PCM Series amplifiers deliver a massive power density (4600W per channel @ 2Ω with the largest PCM20) with unprecedented sonic quality from a very lightweight 2 rack-space amplifier. With this rock solid performance and extreme efficiency, the PCM Series amps represent the industry standard for world-class professional touring sound reinforcement applications.

Phase

Amplitude

Features

  • SAE Audio’s renowned Regulated SMPS power supplies.
  • High efficiency Class I™ power modules.
  • Differential Amplifier balanced inputs for improved CMRR and noise rejection.
  • High grade components for a superior sonic performance.
  • Maximum stability at continuous full-power operation at 2Ω loads.

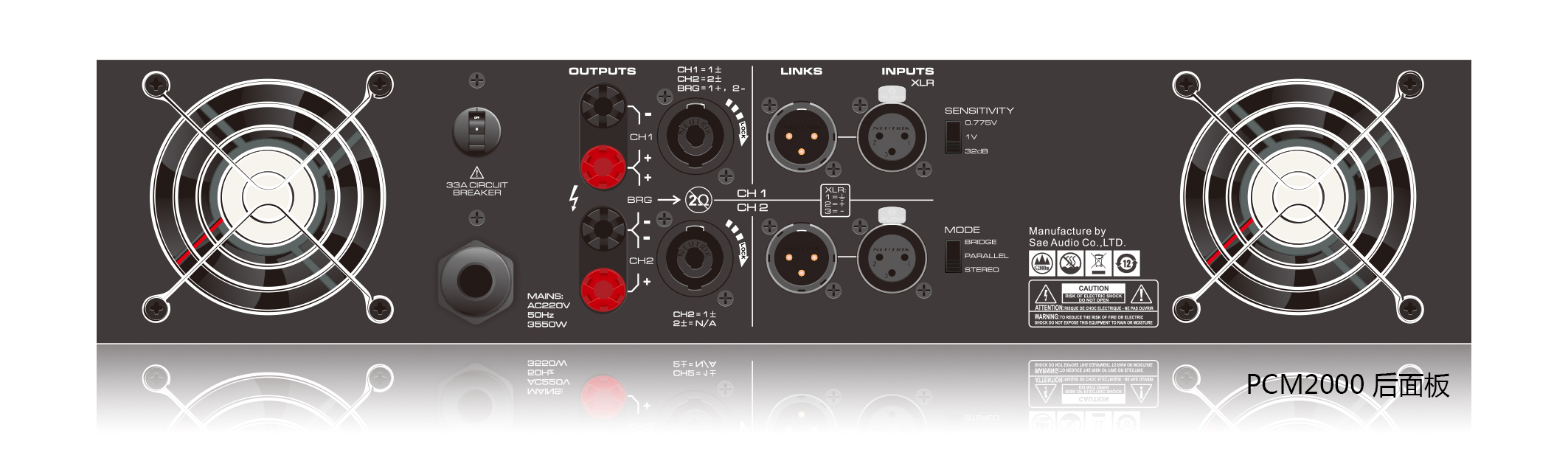

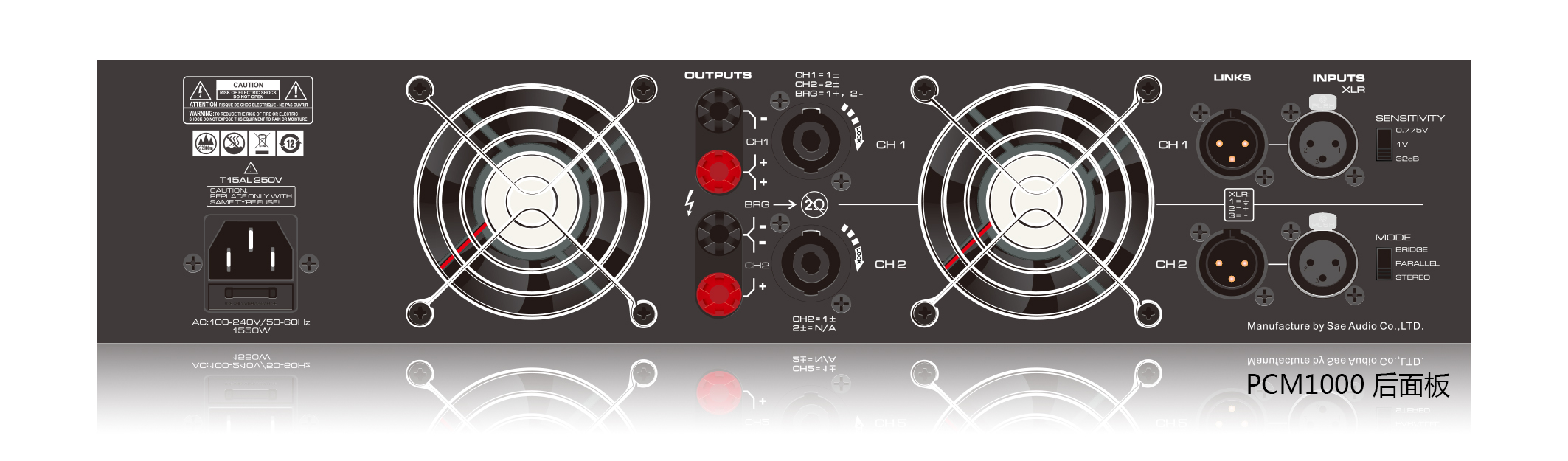

  • XLR input and signal link connectors.
  • SpeakON NL4 and binding post output connectors.
  • Input sensitivity selector on the back panel (32dB / 1v / 0.775v).
  • Routing mode selector on the back panel (stereo / bridge-parallel).
  • Mains circuit-breaker on the back panel.
  • Channel independent temperature, protection and clip warning indicators on the front panel.
  • Channel independent power and -5dB / -10dB / -20dB / signal presence indicators on the front panel.
  • Parallel and bridge indicator on the front panel.
  • Lightweight design (15.5kg on the highest power PCM20).

Specifications


Model PCM1000 PCM2000
Output power (AC 220v/50Hz. +/-10%. All channels driven output power, THD=1%)
8Ω Stereo 1000w x2* 2000w x2
4Ω Stereo 1750w x2** 3500w x2*
2Ω Stereo 2250w x2** 4600w x2*
8Ω Bridge 3500w** 7000w*
4Ω Bridge 4500w** 7800w*
Other specifications
Frequency Response 20Hz – 20kHz, +0/-1dB 20Hz – 20kHz, +0/-1dB
THD+N < 0.05% < 0.05%
S/N Rate ≥ 100dB ≥ 85dB
Damping Factor > 500 > 280
Input Sensitivity 0.775v / 1v / 32dB 0.775v / 1v / 32dB
Input Impedance (bal/unbal) 20kΩ / 10kΩ 20kΩ / 10kΩ
Voltage Gain 41.2dB 44.2dB
Output circuitry Class D Class ITM
Dimension / Weight
Product Dimensions (mm) 483×306.5×89 483×456.5×89
Packing Dimensions (mm) 560x420x170 595x565x170
Weight 7.9kg 15.5kg

Remark:
1、*,The power is tested under the condition of 40ms burst,1kHz sine wave and 1% THD.
2、**,The other power is tested under the condition of 20ms burst,1kHz sine wave and 1% THD.
3、SAE reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
