PQM Datasheet

PQM series

The PQM series is our flagship touring grade 4 channel amplifier. Exemplifying over 15 years of research and development by SAE Audio, they feature our most advanced technologies in both Regulated Switch Mode Power Supplies and our patented Class I™ power modules. The PQM Series amplifiers deliver a massive power density (5000W per channel @ 2Ω with the largest PQM13) with unprecedented sonic quality from a very lightweight 2 rack-space amplifier. With this rock solid performance and extreme efficiency, the PQM Series amps represent the industry standard for world-class professional touring sound reinforcement applications.

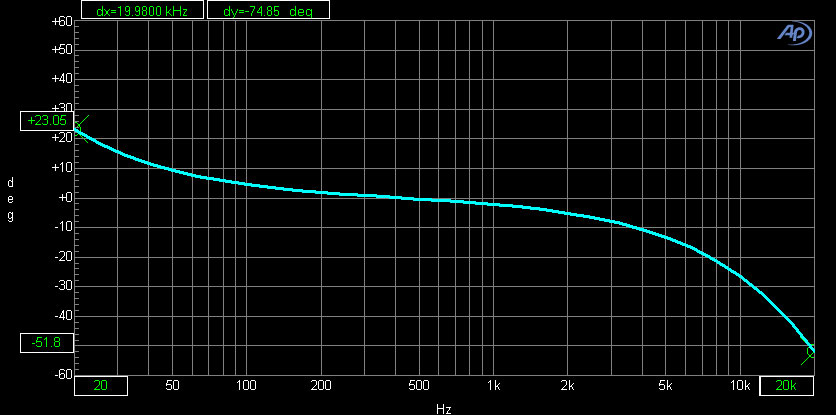

Phase

Amplitude

Features

  • SAE Audio’s renowned Regulated SMPS power supply.
  • Differential Amplifier balanced inputs for improved CMRR and noise rejection.
  • High grade components for a superior sonic quality.
  • Maximum stability at continuous full-power operation at 2Ω loads.
  • XLR input and signal link connectors.
  • SpeakON NL4 and binding post output connectors.

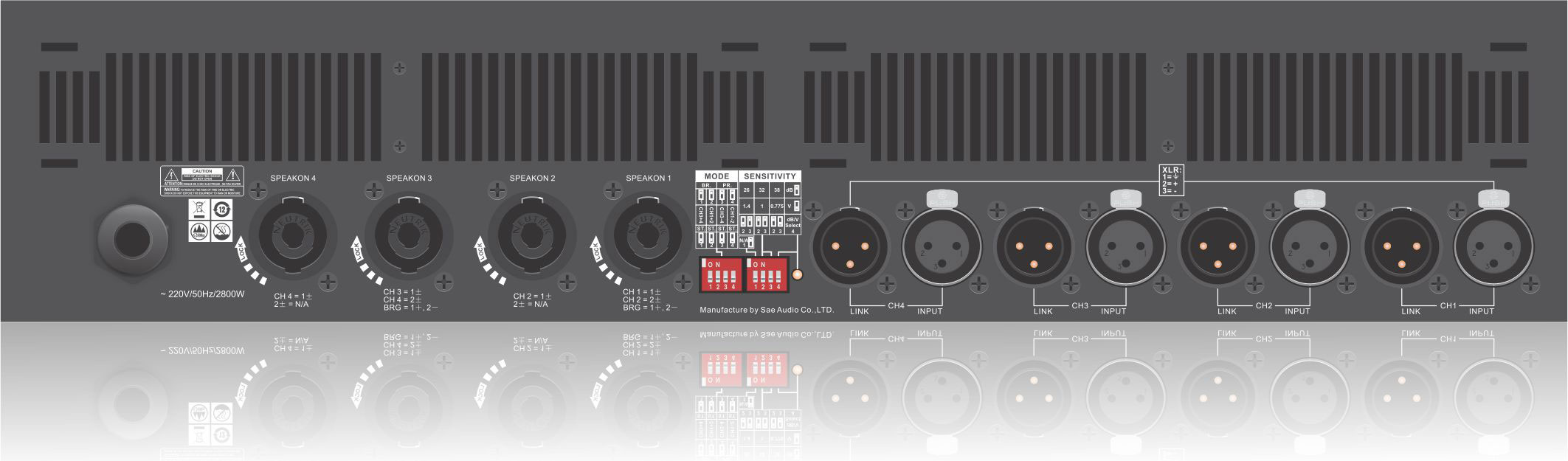

  • Routing mode selector on the back panel (stereo / bridge-parallel).

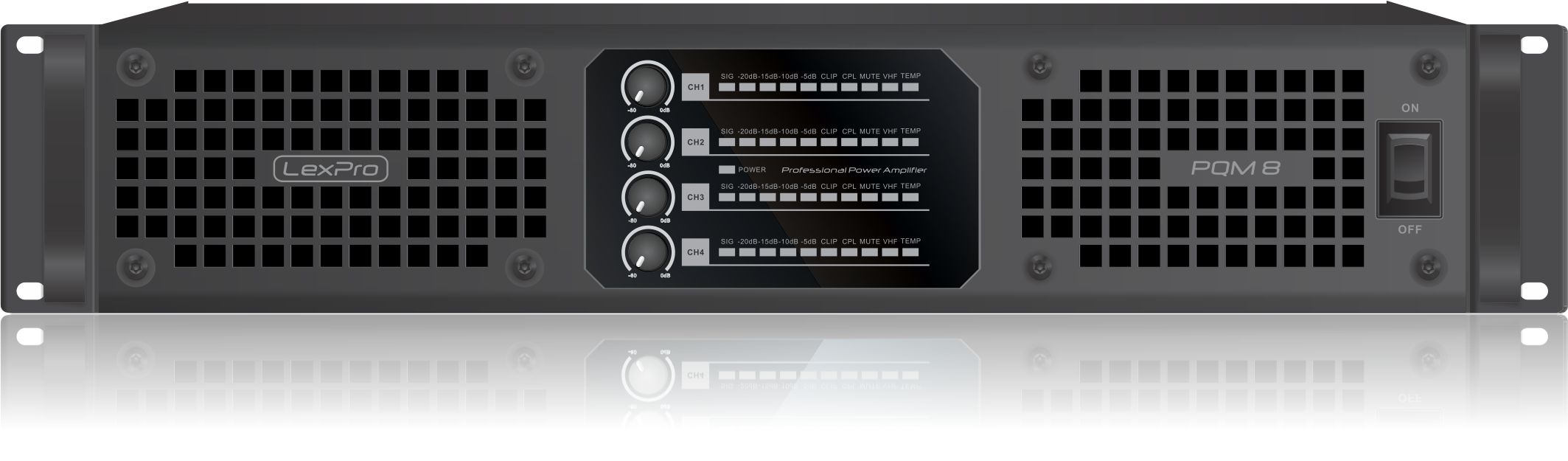

  • Channel independent temperature, protection, VHF and clip warning indicators on the front panel.
  • Channel independent -5dB/-10dB/-15dB/-20dB/signal presence and mute indicators on the front panel.
  • Power and bridge/parallel indicators on the front panel.

Specifications


Model PQM800 PQM1300 PQM8 PQM13
Output power (AC 220v/50Hz. +/-10%. All channels driven output power, THD=1%)
8Ω Stereo 800W x4** 1300W x4** 800W x4* 1300W x4*
4Ω Stereo 1300W x4** 2000W x4** 1400W x4** 2100W x4**
2Ω Stereo 1300W x4** 2000W x4** 160W x4** 2500W x4**
8Ω Bridge 2500W x2** 3700W x2** 2800W x2** 4200W x2**
4Ω Bridge 2500W x2** 3700W x2** 3200W x2** 5000W x2**
Other specifications
Frequency Response 20Hz – 20kHz, +0/-1dB 20Hz – 20kHz, +0/-1.5dB
THD+N ≤ 0.05% ≤ 0.05%
S/N Rate ≥ 98dB ≥ 80dB
Damping Factor ≥ 200 ≥ 800
Input Sensitivity 0.775v / 1v / 32dB 0.775v / 1v / 1.4v / 38dB / 32dB / 26dB
Input Impedance (bal/unbal) 20kΩ / 10kΩ 20kΩ / 10kΩ
Voltage Gain 40.3dB 42dB 40.3dB 42.3dB
Output circuitry Class D Class ITM
Dimension / Weight
Product Dimensions (mm) 483x295x89 483x295x89 483x448x89 483x448x89
Packing Dimensions (mm) 560x420x170 560x420x170 595x565x170 595x565x170
Weight 9.2kg 9.7kg 15.5kg 15.7kg

Remark:
1、*,The power is tested under the condition of 40ms burst,1kHz sine wave and 1% THD.
2、**,The power is tested under the condition of 20ms burst,1kHz sine wave and 1% THD.
3、Other data is tested under Q/SAE 1-2009 standard.
4、SAE reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
